See the building workflows page if you have not already. If you are looking for the documentation for a specific input field, find the name of the field from the sidebar on the right. Expression documentation can be found here.

Inputs​

In addition to defining what your workflow does with jobs, you can define the workflow form users will fill out when running the workflow. This form is what's displayed in the Run Workflow tab, and the values of the inputs can be accessed from inside jobs using expressions. Inputs are defined in the following structure:

on:
  execute:
    inputs:
      name_of_input_1:
        type: type_of_input_1
        ... other fields (potentially type specific) ...
      name-of-input-2:
        type: type_of_input_2
        ... other fields (potentially type specific) ...

The name of an input must be composed of alphanumeric characters, dashes, and underscores. When defining the YAML file in the Build tab, the form is previewed on the right side of the screen:

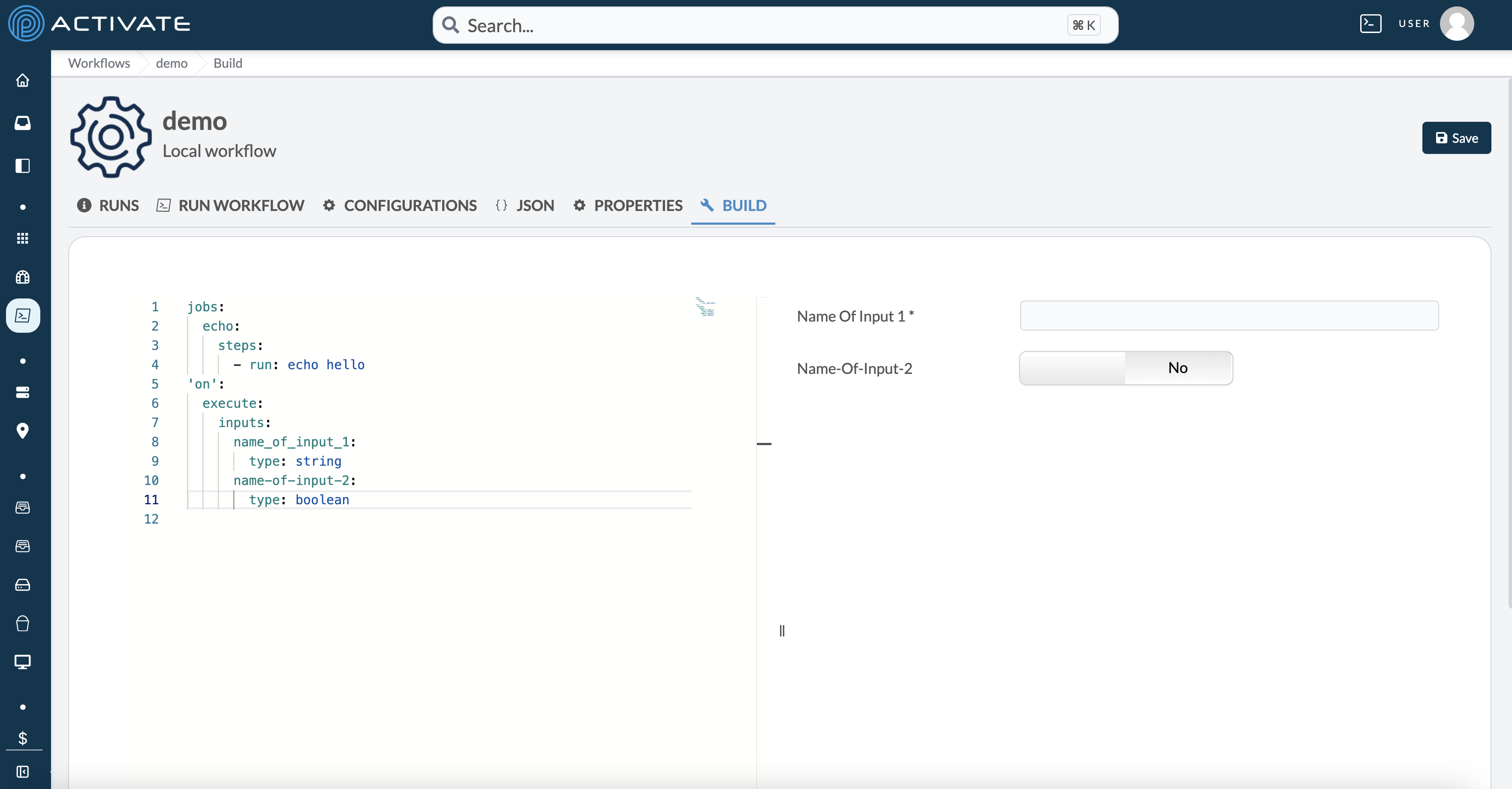

Screenshot of workflow builder

Input Types​

Below is a list of each type and its modifying attributes. Unless otherwise noted, each type can be modified by any of the universal attributes.

boolean​

A checkbox or toggle switch representing a boolean value (true/false).

Useful for optional settings, enabling/disabling features, or making binary choices (such as "Enable logging?").

color-picker​

An input field that allows users to select a color.

Useful for customizing the appearance of visual elements, such as selecting colors for charts, backgrounds, or UI components.

compute-clusters​

Represents a selection of compute clusters.

Attributes:

  • csp: Specifies the CSP (cloud service provider). Options are aws, azure, and google.
  • include-workspace: Indicates whether to include workspace clusters.
  • provider: Specifies the compute resource provider.

Allows users to select the specific compute cluster where their job will run, essential for distributing workloads across available resources.

A dropdown menu allowing the user to select from a list of predefined options.

Attributes:

  • options: A list of options with label and value.
  • option-key: A key to determine the selected option.

Ideal for selecting from multiple predefined options, such as job schedulers, input methods, or configuration settings.

editor​

A code editor input field with syntax highlighting.

Attributes:

  • language: Specifies the language for syntax highlighting (such as yaml, json, etc.).

Useful for entering and editing code snippets, configuration files, or scripts directly within the workflow.

group​

A collapsible group of related input fields.

Attributes:

  • items: A list of inputs that belong to this group.
  • collapsed: Boolean to indicate if the group should be initially collapsed.

Organizes related inputs together. Especially useful for advanced settings or additional information that can be optionally expanded by the user.

Creates a header in the input form.

Attributes:

  • text: The header text.
  • bold: Indicates if the text should be bold.
  • size: Font size of the header.

Adds titles or section headers in the input form for better organization and readability.

instance-type​

Represents a selection of instance types for a specific CSP (cloud service provider) and region.

Attributes:

  • csp: Specifies the CSP (aws, azure, or google).
  • region: The region associated with the instance types.

Allows users to choose specific instance types for their compute tasks. Important for matching job requirements with appropriate resources.

kubernetes-clusters​

Represents a selection of Kubernetes clusters.

Attributes:

  • autoselect: Controls automatic selection of a cluster.

Allows users to choose a Kubernetes cluster for subsequent resource specifications. Useful when the workflow can operate on any available cluster or when the cluster is determined at runtime.

kubernetes-configmaps​

Represents a selection of Kubernetes ConfigMaps.

Attributes:

  • clusterName: The name of the Kubernetes cluster containing the ConfigMap.
  • namespace: The namespace that holds the ConfigMap.
  • autoselect: Controls automatic selection of a ConfigMap.

Used to inject non‑secret configuration data into pods. Enables dynamic configuration without rebuilding container images.

kubernetes-deployments​

Represents a selection of Kubernetes Deployments.

Attributes:

  • clusterName: The name of the Kubernetes cluster where the Deployment is defined.
  • namespace: The namespace that contains the Deployment.
  • autoselect: Controls automatic selection of a Deployment.

Enables selection of declarative workload specifications for scaling, rolling updates, and version control.

kubernetes-namespaces​

Represents a selection of Kubernetes namespaces within a specific cluster.

Attributes:

  • clusterName: The name of the Kubernetes cluster that contains the namespace.
  • autoselect: Controls automatic selection of a namespace.

Enables users to pick a namespace after a cluster has been chosen. Essential for scoping resources such as pods, services, or config maps to a particular namespace.

kubernetes-pods​

Represents a selection of Kubernetes pods.

Attributes:

  • clusterName: The name of the Kubernetes cluster where the pod resides.
  • namespace: The namespace that contains the pod.
  • autoselect: Controls automatic selection of a pod.

Allows users to reference a specific pod for actions like log retrieval, exec, or monitoring. Critical for targeting workloads at the pod level.

kubernetes-pvc​

Represents a selection of Kubernetes PersistentVolumeClaims (PVCs).

Attributes:

  • clusterName: The name of the Kubernetes cluster containing the PVC.
  • namespace: The namespace that holds the PVC.
  • autoselect: Controls automatic selection of a PVC.

Facilitates binding storage resources to workloads. Important for managing data persistence in Kubernetes environments.

kubernetes-secrets​

Represents a selection of Kubernetes Secrets.

Attributes:

  • clusterName: The name of the Kubernetes cluster where the secret is stored.
  • namespace: The namespace that contains the secret.
  • autoselect: Controls automatic selection of a secret.

Provides a way to reference sensitive configuration data (e.g., passwords, tokens) for use in pods or other resources.

kubernetes-services​

Represents a selection of Kubernetes Services.

Attributes:

  • clusterName: The name of the Kubernetes cluster where the Service exists.
  • namespace: The namespace that holds the Service.
  • autoselect: Controls automatic selection of a Service.

Used to expose pods internally or externally, providing stable networking endpoints for applications.

kubernetes-statefulsets​

Represents a selection of Kubernetes StatefulSets.

Attributes:

  • clusterName: The name of the Kubernetes cluster where the StatefulSet resides.
  • namespace: The namespace that contains the StatefulSet.
  • autoselect: Controls automatic selection of a StatefulSet.

Allows users to target stateful workloads that manage stable network identities and persistent storage.

kubernetes-workloads​

Represents a generic selection of Kubernetes workloads (any resource type that runs pods).

Attributes:

  • clusterName: The name of the Kubernetes cluster containing the workload.
  • namespace: The namespace that contains the workload.
  • autoselect: Controls automatic selection of a workload.

Provides a flexible way to reference any pod‑based workload (Deployments, StatefulSets, DaemonSets, etc.) when the exact type is not important for the operation.

list​

A list of items, typically used for repeating input patterns.

Attributes:

  • template: The template defining the type of items in the list.
  • items-collapsible: Whether each item should be collapsible.

Useful for inputs where multiple entries of the same type are needed, such as a list of regions, parameters, or configuration items.

multi-dropdown​

A dropdown menu allowing the user to select multiple options.

Attributes:

  • options: A list of options with label and value.

Ideal for selecting multiple items from a list, such as tags, categories, or resource groups.

number​

An input field for entering numerical values.

Attributes:

  • min: The minimum allowable value.
  • max: The maximum allowable value.
  • step: The increment step for the number input.
  • slider: Boolean to indicate if the input should be displayed as a slider.

Useful for specifying numerical parameters, such as counts, thresholds, limits, or any other numeric settings.

organization-groups​

Represents a selection of organization groups.

Attributes:

  • csp: Specifies the CSP (cloud service provider). Options are aws, azure, and google.

Allows users to select organizational groups for permissions, access control, or grouping related resources.

password​

Allows users to input a password, conventionally obfuscated.

region​

Represents a geographic region associated with a CSP.

Attributes:

  • csp: Specifies the CSP (cloud service provider). Options are aws, azure, and google.

Allows users to select a specific geographic region for their resources, essential for optimizing latency, compliance, and availability.

slurm-accounts​

Represents a selection of SLURM accounts.

Attributes:

  • resource: The compute resource associated with the SLURM accounts.

Allows users to select SLURM accounts for job submissions. Essential for managing resource allocation and accounting in SLURM environments.

slurm-partitions​

Represents a selection of SLURM partitions.

Attributes:

  • resource: The compute resource associated with the SLURM partitions.
  • account: Specifies the SLURM account associated with the partitions.

Allows users to select SLURM partitions for job submissions. Essential for organizing and managing job queues in SLURM environments.

slurm-qos​

Represents a selection of SLURM QoS (Quality of Service) settings.

Attributes:

  • account: Specifies the SLURM account associated with the QoS settings.
  • partition: Specifies the SLURM partition associated with the QoS settings.
  • resource: The compute resource associated with the SLURM QoS.

Allows users to select SLURM QoS settings for job submissions. Essential for prioritizing and managing job performance in SLURM environments.

storage​

Represents a selection of storages.

Attributes:

  • csp: Filters options by the CSP (cloud service provider). Options are aws, azure, and google.
  • subtype: Filters options by the subtype of the storage (such as lustre).
  • region: Filters options by the region.

Allows users to select storages for their jobs. Useful for sharing/persistent data between workflow runs.

storage-image​

Represents a selection of storage images.

Attributes:

  • csp: Specifies the CSP (cloud service provider). Options are aws, azure, and google.
  • subtype: Specifies the subtype of the storage image (such as lustre).

Allows users to select storage images for their jobs. Essential for specifying the data environment and ensuring compatibility with compute tasks.

string​

A single-line text input or a multi-line text area for string values.

Attributes:

  • placeholder: Placeholder text for the input field.
  • textarea: Indicates if the input should be a text area.

Collects textual input from users. Suitable for names, descriptions, commands, or any other text-based configuration.

zone​

Represents a selection of zones within a region for a specific CSP (cloud service provider).

Attributes:

  • csp: Specifies the CSP. Options are aws, azure, and google.
  • region: Specifies the region associated with the zone.

Allows users to select specific zones for their resources. Important for optimizing resource placement, redundancy, and compliance.

Universal Input Attributes​

Most input types above can be modified by a set of common attributes, which help in configuring the basic behavior and presentation of the input fields. The only type without these universal attributes is header, which has its own unique set of attributes focused on display rather than interaction.

default​

Sets the default value for the input field.

Usage: Provides an initial value if the user does not input one.

Example:

default: 'Enter description here'

disabled​

Disables the input field, making it read-only and uneditable by the user.

Usage: Use this when you want to display information without allowing the user to change it.

Example:

disabled: true

hidden​

A condition to hide or show the input field based on other inputs or logic.

Usage: Creates a dynamic form where inputs can be conditionally displayed.

Example:

hidden: ${{ inputs.show_advanced == false }}

ignore​

When set to true, the input field's value is ignored and not sent to the backend.

Usage: Useful for fields that are needed for UI logic but should not be part of the final payload.

Example:

ignore: true

label​

A human-readable name for the input field that will be displayed in the UI.

Usage: Helps users understand what data is expected.

Example:

label: Job Description

optional​

Indicates whether the input field is optional or required.

Usage: Determines whether the user must provide a value.

Example:

optional: true

tooltip​

A tooltip text providing additional information about the input field.

Usage: Assists users by offering more context or instructions when they hover over the input field.

Example:

tooltip: 'Provide a detailed description of the job'

Expressions​

Expressions allow workflow authors to programatically control the input form based on other inputs and access contexts inside of jobs.

In order for expressions to be evaluated, they must be wrapped in ${{ }}.

Operators​

The following operators are available for use in expressions, and generally correspond to their javascript counterparts. Example expressions and what they evaluate to are included.

  • &&: Logical AND
    • ${{ true && 'truthy value' }} = 'truthy value'
    • ${{ 'truthy value' && true }} = true
    • ${{ 0 && true }} = 0
    • ${{ 'truthy value' && false }} = false
  • ||: Logical OR:
    • ${{ false || 'any value' }} = 'any value'
    • ${{ 'truthy value' || 'any value' }} = 'truthy value'
  • ==: Equal to
    • ${{ 1 == true }} = true
  • !=: Not equal to
    • ${{ 1 != true }} = false
  • ===: Strict equal to
    • ${{ 1 === true }} = false
  • !==: Strict not equal to
    • ${{ 1 !== true }} = true
  • >: Greater than
    • ${{ 'a' > 'b' }} = false
  • <: Less than
    • ${{ 1.5 < 1 }} = false
  • >=: Greater than or equal to
    • ${{ 1.0 >= 1 }} = true
  • <=: Less than or equal to
    • ${{ false <= true }} = true
  • +: Addition/Concatenation
    • ${{ 'a' + 'b' }} = 'ab'
    • ${{ 1 + 1.5 }} = 2.5
  • -: Subtraction
    • ${{ 1 - 1.5 }} = -0.5
  • *: Multiplication
    • ${{ 4 * 4 }} = 16
  • /: Division
    • ${{ 9 / 4 }} = 2.25
  • **: Exponentiation
    • ${{ 2 ** 4 }} = 16
  • //: Floor division
    • ${{ 4 // 3 }} = 1
  • ??: Nullish coalescing
    • ${{ 'hello' ?? 'default' }} = 'hello'
    • ${{ undefined ?? 'default' }} = 'default'
  • get: Get index/property:
    • ${{ ["a", "b"] get 1 }} = "b"
    • ${{ {"a":"c", "b":"d"} get a }} = "c"
    • ${{ 'ab' get 0 }} = 'a'
  • in: Left in right:
    • ${{ "a" in ["a", "b"] }} = true
    • ${{ "b" in {"a":"c", "b":"d"} }} = true
    • ${{ "d" in {"a":"c", "b":"d"} }} = false

Special operators (not binary):

  • !: Logical NOT:
    • ${{ !false }} = true
    • ${{ "hello" !in ["hello", "goodbye"] }} = false
  • ( ): Logical grouping:
    • ${{ true && (true || true) && false }} = false
    • ${{ 10 / (2 + 8) }} = 1
  • ? :: Conditional (ternary):
    • ${{ true && false ? 'a' : 'b' }} = 'b'
    • ${{ 'truthy value' ? 'a' : 'b' }} = 'a'

Parser idiosyncracies to take note of:

  • Expressions are very much whitespace sensitive, relying on spaces to separate operators and operands. Thus ${{ 1 + 1 }} will evaluate to 2 but ${{ 1+1 }} will evalutate to the string 1+1. Logical not ! is the only operator that should not be separated with a space.
  • If an expression has even a minor mistake, the parser will never throw an error but may return any value, screwing up your workflow in strange ways. So double check your expressions.

Contexts​

The following contexts are available for use in expressions:

  • inputs: Used to access the values and schema of the input fields.
  • needs: For now only needs.<job>.outputs.<name> is supported, which allows access to outputs from the current job or its dependency jobs.
  • app: For apps only, app.target can be used to fetch the cluster information, in the same format of the compute-clusters type.
  • sessions: Contains a field for each session described in the workflow. For an example, see Building Sessions.
  • org: Contains organization-specific variables that are set by your administrator. Use org.<variable name> in an expression to access these.
  • . and ../: Used to access schema values.

The workflow form can only access the values and schema of the inputs field through the inputs context and . self referencing, alongside your organization variables through org. Information from job dependencies accessed through the needs context, sessions accessed through the sessions context, and app cluster information from the app context are only available during execution, so they should only ever be accessed inside of jobs.

Outputs​

Accessing outputs​

Outputs from a job can be accessed using the needs context. The following example demonstrates how to access the outputs from within the current job:

jobs:
  job1:
    steps:
      - name: fake output
        run: echo PORT=3001 >> $OUTPUTS
      - name: Echo output from self
        run: echo ${{ needs.job1.outputs.PORT }} # Prints 3001
  job2:
    needs:
      - job1
    steps:
      - name: Echo output from job 1
        run: echo ${{ needs.job1.outputs.PORT }} # Prints 3001
Accessing outputs from named steps​

Steps can be given an id field to create named steps. Outputs from named steps can be accessed using needs.<job>.steps.<step_id>.outputs.<output_name>. When using named steps, outputs are not automatically published to the job outputs and must be explicitly mapped to job outputs using the job outputs field.

jobs:
  main:
    steps:
      - name: Create step output
        id: test
        run: echo FOO=BAR >> $OUTPUTS
      - name: Access output from named step
        run: echo ${{ needs.main.steps.test.outputs.FOO }} # Prints BAR

Writing outputs​

To create outputs that can be accessed by other jobs or steps, you must write key-value pairs to a special output file. The path to this file is provided through the $OUTPUTS environment variable.

Output format: Each output must be written as key=value on a separate line.

Basic example:

jobs:
  example:
    steps:
      - name: Create outputs
        run: |
          echo PORT=3001 >> $OUTPUTS
          echo DATABASE_URL=postgres://localhost:5432/mydb >> $OUTPUTS
          echo STATUS=success >> $OUTPUTS

Important considerations:

  • Job dependencies: Jobs that consume outputs from other jobs should list those jobs as dependencies using the needs field. This ensures the producer job completes before the consumer job starts, making the outputs reliable.
  • Named step outputs: When using steps with id fields, outputs are scoped to that specific step and are not automatically published to the job level.
  • Output persistence: Outputs are preserved throughout the workflow execution and can be accessed by any subsequent job or step that has the proper dependencies.
  • Deprecation notice: Automatic publishing of step outputs to job level is planned to be removed in a future version. Using the explicit outputs map (described below) is the recommended approach for forward compatibility.

Publishing outputs using the job-level outputs map​

To access job outputs from another job, jobs can explicitly define which outputs to publish using an outputs map.

Example

jobs:
  build:
    outputs:
      version: ${{ needs.build.steps.get_version.outputs.VERSION }}
      artifact_url: ${{ needs.build.steps.upload.outputs.URL }}
    steps:
      - name: Get version
        id: get_version
        run: echo VERSION=1.2.3 >> $OUTPUTS
      - name: Upload artifact
        id: upload
        run: echo URL=https://example.com/artifact.zip >> $OUTPUTS

Apps and app context​

When converting a workflow into an app, the workflow is moved to the Apps page and gains the additional app context. Currently, the only property available on the app context is target, which represents the compute resource that is targeted by an app on any given run. The example below shows the context and property as app.target, which is used in this case to print the target's name.

jobs:
  main:
    steps:
      - name: Print app.target
        run: echo ${{ app.target }}

Inputs and Self Referencing​

How and when to use the inputs keyword and/or the self referencing . can be confusing; hopefully this section can make things a bit clearer.

Let us consider the following example of a workflow form defined in the yaml. There are two string inputs:

on:
  execute:
    inputs:
      username:
        type: string
      workdir:
        type: string

username is the user's username and string_field_2 is a directory I want to create based on the username by default. To access the value of an input, we use the inputs keyword:

on:
  execute:
    inputs:
      username:
        type: string
      workdir:
        type: string
        default: ${{ "~/path/to/directory/" + inputs.username }}

This ensures that every time the user updates the username, the default workdir is updated. Doing it like this allows the user to override the workdir with their own custom directory path in the workflow form if they would like to.

Now let us consider another example:

on:
  execute:
    inputs:
      ...
      option_1_input:
        type: string
        hidden: ${{ some long and complicated boolean expression }}
      option_2_input:
        type: string

We want the option 2 input to appear when the option 1 input is hidden, and be hidden when the option 1 input appears. Rather than rewriting the long and complicated boolean expression, we can access the schema of the input by using ../:

on:
  execute:
    inputs:
      ...
      option_1_input:
        type: string
        hidden: ${{ some long and complicated boolean expression }}
      option_2_input:
        type: string
        hidden: ${{ !../option_1_input.hidden }}

We use the ../ because it represents going backwards in our path to the level of the object containing the property with the expression; if we wanted to access a property inside option_2_input from the hidden property instead, such as type, we could simply do ${{ .type }}, which would be equivalent to ${{ ../option_2_input.type }}. We can also access the schema by using the inputs keyword and ensuring the last property is wrapped in brackets; so an equivalent expression for ${{ !../option_1_input.hidden }} in the example above would be ${{ !inputs.option_1_input[hidden] }}.

In summary, here are all the different possibilities:

on:
  execute:
    inputs:
      field_1:
        type: number
      field_2:
        type: string
        default: ${{ inputs.field_1 }} # The value of field 1, which is whatever the user sets it to on the form
      field_3:
        type: string
        default: ${{ inputs[field_1] }} # This would actually be the field_1 schema object which is {"type": "number"}. It would probably not be rendered as a string properly.
      field_4:
        type: string
        default: ${{ inputs.field_1[type] }} # This would be just the string "number"
      field_5:
        type: string
        default: ${{ ../field_1 }} # This would be the field_1 schema object which is {"type": "number"}.
      field_6:
        type: string
        default: ${{ ../field_1.type }} # This would be just the string "number"
      field_7:
        type: string
        default: ${{ .type }} # This would be just the string "string" since field_7 has type: string

Conditional Visibility​

Inputs can be dynamically hidden based on the value or attributes of other inputs. This is useful for creating more dynamic and user-friendly forms where advanced options are only shown when needed.

on:
  execute:
    inputs:
      header:
        type: header
        text: Starter Local Workflow
        size: 20
      show_advanced:
        type: boolean
        label: Show Advanced Settings
        default: false
      advanced_setting:
        type: string
        label: Advanced Setting
        hidden: ${{ !inputs.show_advanced }}
      advanced_setting2:
        type: string
        label: Advanced Setting 2
        hidden: ${{ inputs.advanced_setting[hidden] }}

In this example, advanced_setting and advanced_setting2 are hidden fields until the user selects Yes from the show_advanced toggle switch. advanced_setting2 is hidden based on the hidden attribute of advanced_setting, whereas advanced_setting is hidden based on the value of show_advanced.

Dynamic Default Values​

Default values can be calculated based on other input values.

on:
  execute:
    inputs:
      header:
        type: header
        text: Starter Local Workflow
        size: 20
      base_value:
        type: number
        label: Base Value
        default: 10
      calculated_value:
        type: number
        label: Calculated Value
        default: ${{ inputs.base_value * 2 }}
        hidden: true

In this example, the calculated_value input field has a default value that is twice the value of the base_value input field.
